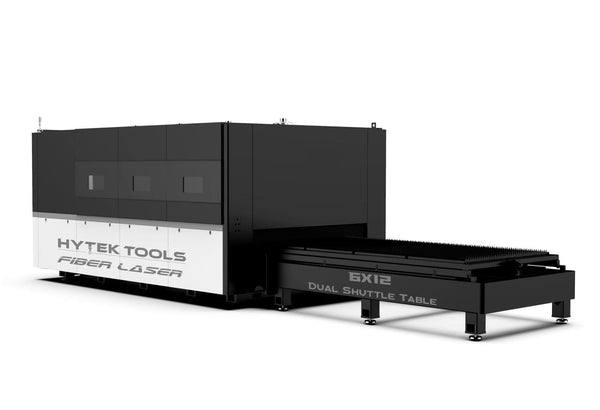

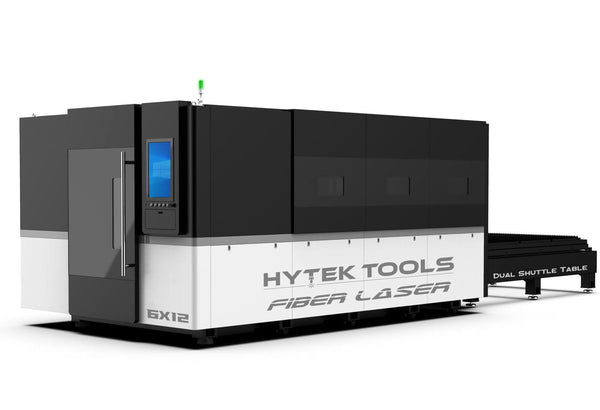

Fiber Laser 6x12 | 6000w-12000w

 Fiber Laser 6x12 | 6000w-12000w

E-Magazine/Print Version:

See this baby in action!

Price Note:

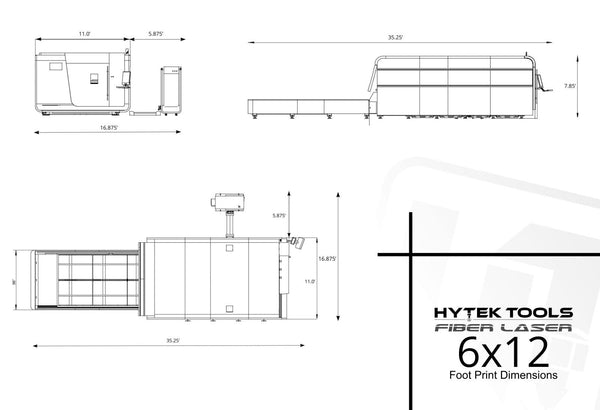

Why so much higher than a 5x10? It takes an inordinate amount of expense to build and deliver. This machine is way oversized for roadways (about 11ft wide). This attributes to the higher cost. Delivery is always included in our prices to within the USA!

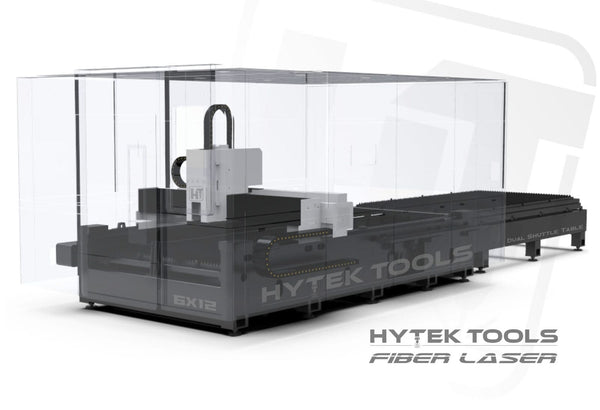

Table Construction & Highlights

• 6.5ft x 13ft cut dimensions
• IPG Photonics (USA) laser source
• Frame 5/8" welded steel tube
• Aviation grade aluminum gantry
• Blade knife table surface
• X, Y axis - stainless steel ball screw transmission
• HiWin linear high precision stainless steel guide rails & bearings
• 22,000 lbs combined table weight
• 40 ton pressed 6061 laser car gantry material

Laser Cut Metals

Laser cut a variety of steel and most highly reflective metals:

• Stainless Steel
• Aluminum
• Carbon Steel
• Titanium
• Nickel Alloys
• Brass
• Copper

Machine Electronics

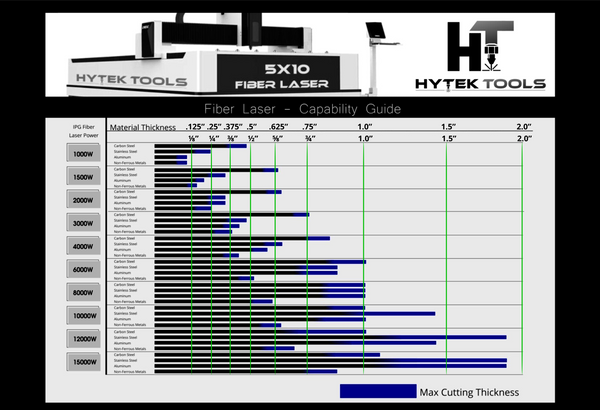

• 6000w-12000w fiber laser (see capability chart below)
• Yaskawa servo drivers & motors
• Schneider electrical components
• Water chiller
• Exhaust fan

Machine Stats

• Cut speed up to 4000in/min
• X, Y, cut accuracy ±0.001"
• X, Y, repeat accuracy ±0.001"

Control Software & Language

• Cypcut

Required Power

• AC480V-600V

Warranties Include:

• Lifetime hardware support from Hytek Tools
• One year parts warranty
• Custom tech videos on request
• 30 Day Buy Back Guarantee!

You Will Need:

• 2 Forklifts to offload (10,000lbs+ +  6+ft forks)

Extras Include:

• Hand delivery by Hytek Tools team members
• On site operation demonstrations
• All inclusive and all included in the listed PRICE - ALWAYS! No surprises!
