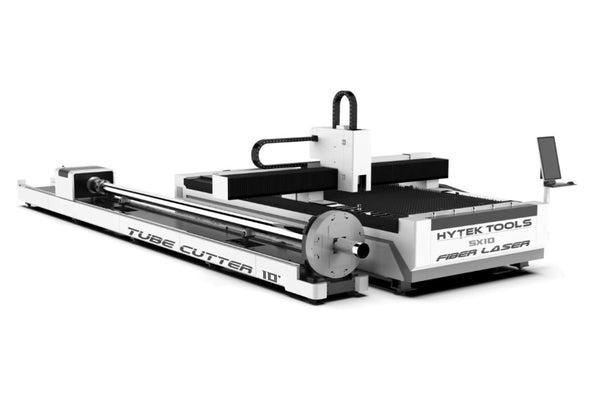

Fiber Laser 5x10 - Tube Cutter Combo OPEN

Regular price $215,000.00

Unit price per

 Fiber Laser - Tube Laser
5x10 | 3000w-6000w

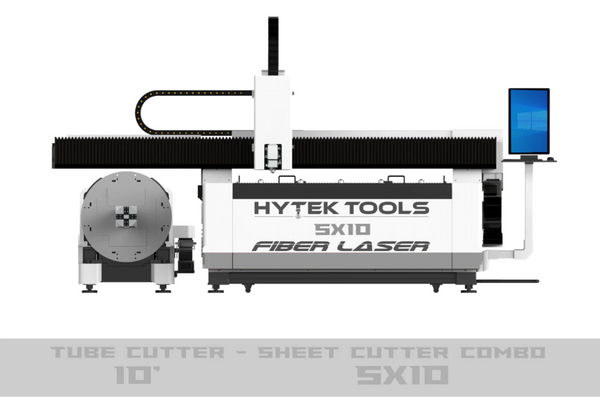

Fiber Laser - Tube Laser Combined

Table Construction & Highlights
  • 5ft x 10ft cut dimensions
  • 20ft Tube Cutter
  • IPG- laser source
  • Frame 5/8" welded steel tube
  • Aviation grade aluminum gantry
  • Blade knife table surface
  • X, Y axis - stainless steel ball screw transmission
  • HiWin linear high precision stainless steel guide rails & bearings
  • 22,000 lbs combined table weight
  • 40 ton pressed 6061 laser car gantry material

Machine Electronics

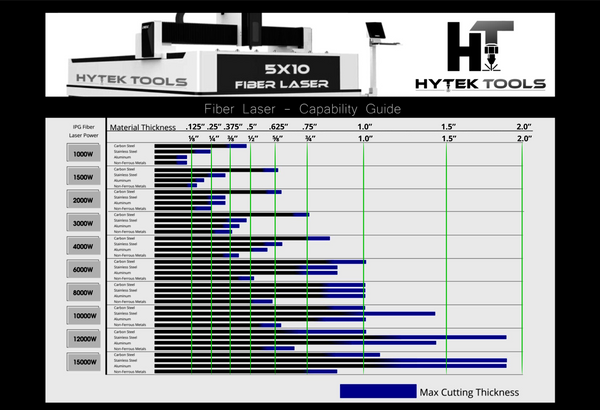

  • 3000w-6000w fiber laser (see capability chart below)
  • Yaskawa servo drivers & motors
  • Schneider electrical components
  • Water chiller
  • Exhaust fan

Machine Stats

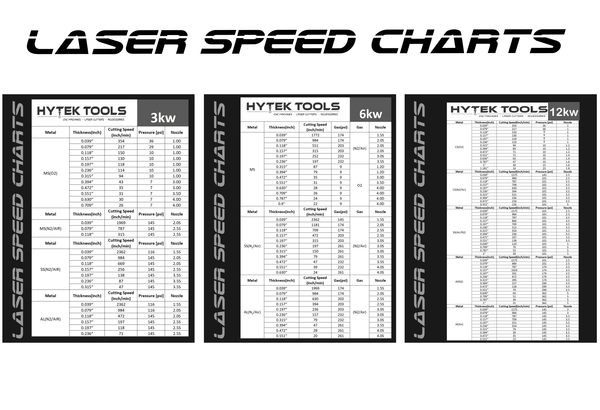

  • Cut speed up to 4000in/min
  • X, Y, cut accuracy ±0.001"
  • X, Y, repeat accuracy ±0.001"

Control Software & Language

  • Cypcut
  • Tube Cut Pro

Required Power

  • AC220V-600V, @100 amp (depending on laser wattage and voltage)

Warranties Include:

  • Lifetime hardware support from Hytek Tools
  • Two year parts warranty
  • Custom tech videos on request

You Will Need:

  • 2 Forklifts to offload (5,000lbs capacity each)

Extras Include:

  • Hand delivery by Hytek Tools Certified Technicians
  • On site operation demonstrations
  • All inclusive and all included in the listed PRICE - ALWAYS! No surprises!
