USED: Large Foam 3D Cutter 3 Axis CNC Router - Cut 4'x8'x2' -

Regular price $35,000.00 Sale price $79,000.00

Unit price per

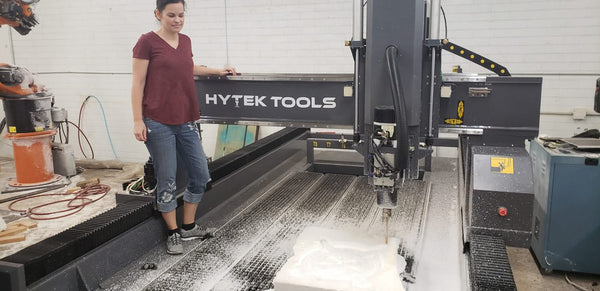

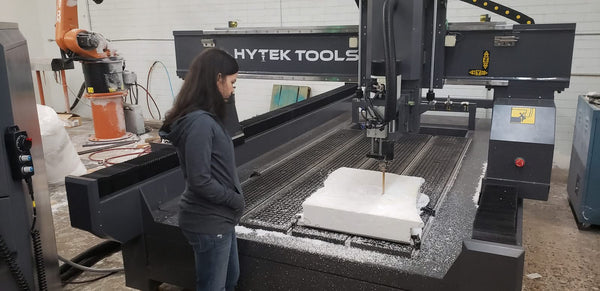

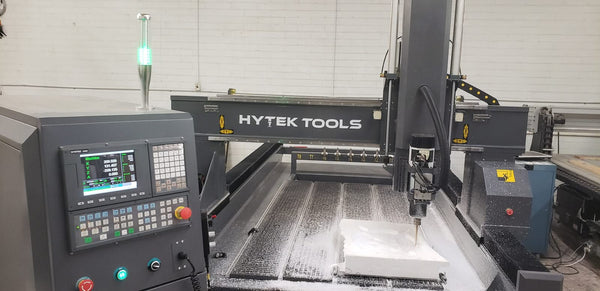

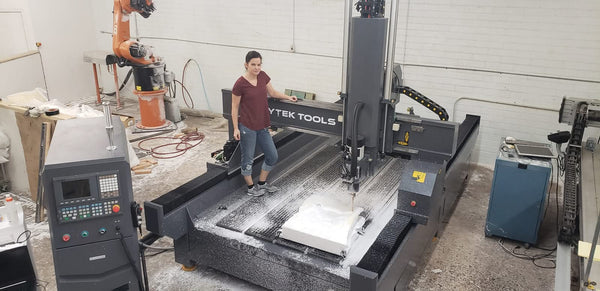

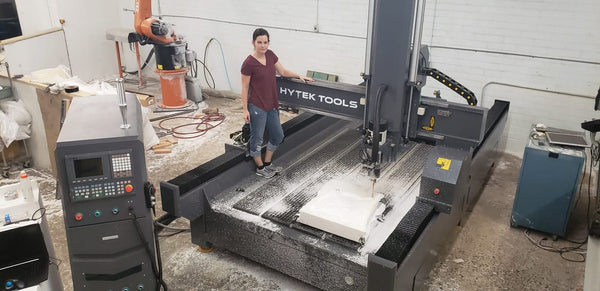

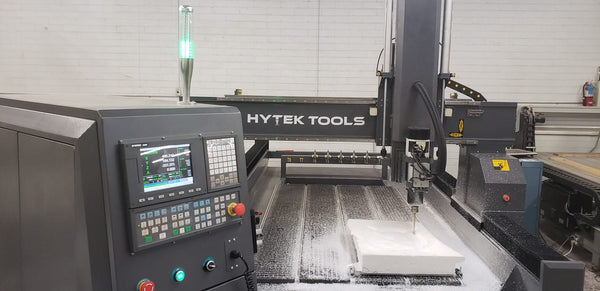

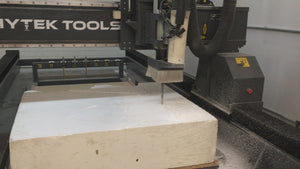

Large Foam 3D Cutter 3 Axis CNC Router - Cut 4'x8'x2'

HYTEK CNC – ALL CUSTOM MADE
ATCTEK 4x8x2 2018 model w/4th Axis

Previously Loved by Metalphysics in Tucson AZ since 2018 - Low Hours


• X,Y,Z working area 4ft * 8ft *24in
• Heavy welded steel frame with 3/8" square tubing (6500lbs table weight)
• 5- constant torque servo drivers
• 5 - Yaskawa servo motors
• ISO30 Tool Holders with ER32 Collets
• X, Y German stainless steel helical rack and pinion drive
• HSD variable speed spindle air cooled, (9 hp)
• Z axis German precision ball screw
• 35mm stainless steel guide rails
• 6 zone vacuum table - dual pump (6hp total)
• surface table combined aluminum T -slot extrusion
• X, Y, Z traveling positioning accuracy ±0.001"
• X, Y, Z traveling re-positioning accuracy ±0.001"
• max rapid travel rate 1500in/min
• max working speed 1500in/min
• working voltage AC220V, 60Hz, single phase @50a
• Syntec controller system

Extras Include:
Lifetime Hardware Tech Support
1 Year Parts Warranty w/ wholesale replacement price thereafter
