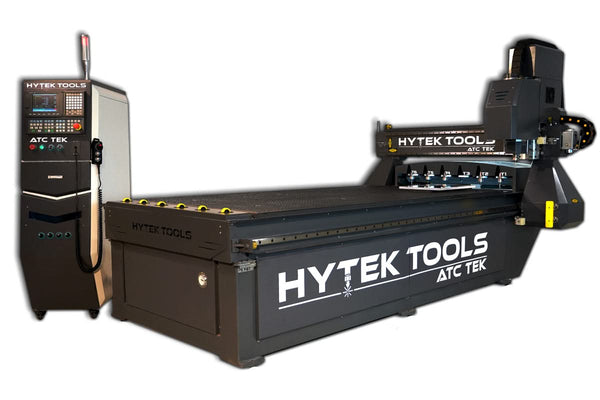

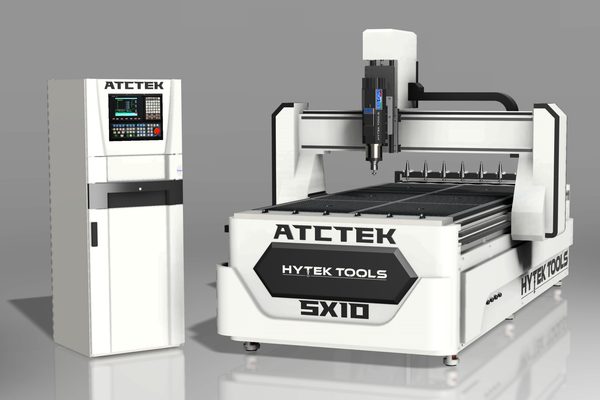

2024 ATCTEK™ CNC Router
See this baby in action!
Table Construction & Highlights
Z axis precision stainless steel ball screw
XY stainless steel helical rack n pinion
Linear ball bearing precision rails with electronic auto oil
Rolling cabinet system housing

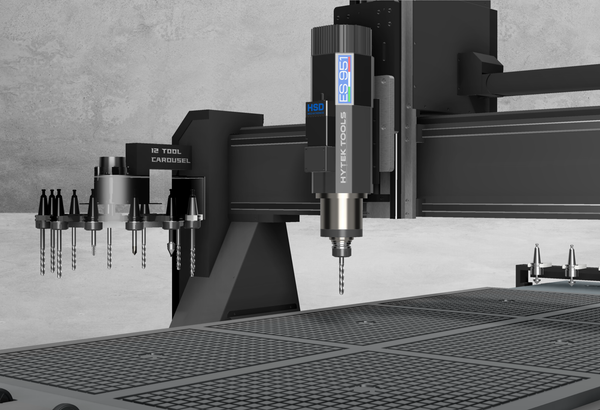

- HSD ES-951 11hp Spindle
- Yaskawa Servos & Drivers

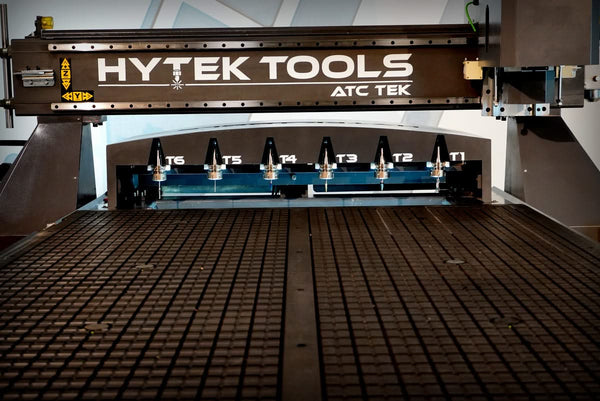

8 piece linear rack auto tool change (free 12 piece carousel upgrade)
8 piece ISO 30 tool holders (free 12 piece upgrade)
8 piece ER32 collet nuts (free 12 piece upgrade)
Various collets included
- Tool holder vice included
- AC 208v single phase @ 90 amp (full 25hp- all components)
- AC 220v three phase @ 50 amp (full 25hp- all components)
- Cut speed up to 1200in/min
- X, Y, cut accuracy ±0.001"
- X, Y, repeat accuracy ±0.001"
- Lifetime hardware support from Hytek Tools
- Three year bumper to bumper parts warranty (all but consumables)
- Custom tech videos on request
You Will Need:
- Forklift to offload (6,000 lbs+ + 6ft forks)
- 8 weeks order to delivery
- Fully setup router machine, ready to go!
- 10 hp vacuum pump

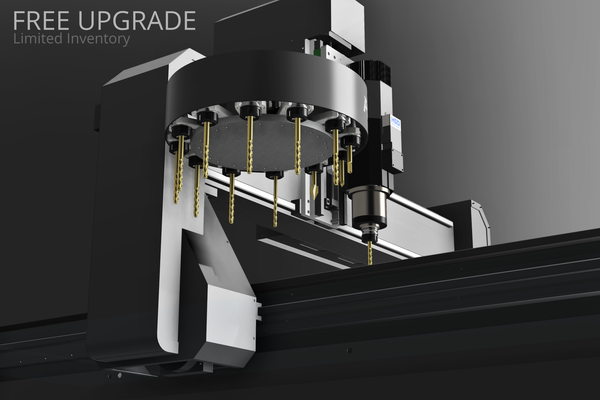

- Free 12 piece carousel tool changer upgrade (limited time)
- Basic router bit set and various collets are included
- $1000 credit in our files .dxf collections and/or 3D models
- Delivery to lower 48 is included, to your door
- On-site setup help after delivery, 1 day to setup machine, 1 day of buyers choice subject matter like 3D work, 2d work, machine work, etc.
- All inclusive and all included in the listed price - ALWAYS! No surprises!
