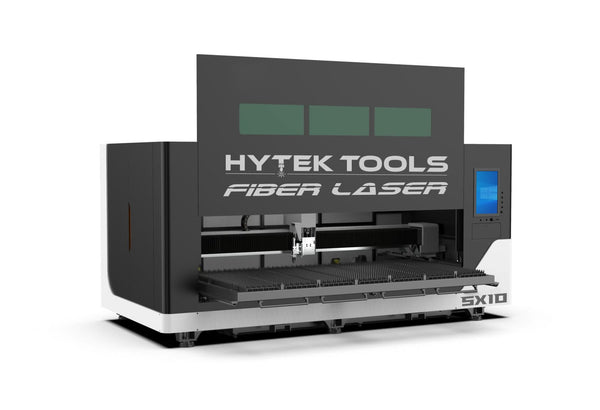

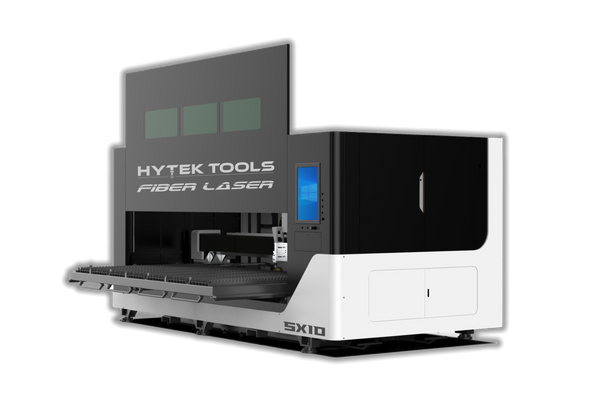

2024 FIBERTEK™ MODEL D | FIBER LASER 5X10 | 1000W-6000W
![Load image into Gallery viewer, Fiber Laser Metal Cutter - USA Hytek Tools](http://www.hytektools.com/cdn/shop/files/fibertek-5x10-fiber-laser-model-d_1b7d624e-b80b-4a2d-9ed4-96d3ae5f0cd4_24x24_crop_center.png?v=1699828118)
![Load image into Gallery viewer, Fiber Laser Metal Cutter - USA Hytek Tools](http://www.hytektools.com/cdn/shop/products/5x10-IPG-fiber-laser-hytek-tools-enclosed-single_24x24_crop_center.jpg?v=1699828118)
![Load image into Gallery viewer, Fiber Laser Cutter Thickness Chart Inches USA Hytek Tools](http://www.hytektools.com/cdn/shop/files/fiber-laser-metal-thickness-cut-chart-inches-usa-listing_e24a1b68-e1c1-4264-b4eb-6345a3bcc38a_24x24_crop_center.png?v=1701798826)
![Load image into Gallery viewer, Fiber Laser Metal Cutter - USA Hytek Tools](http://www.hytektools.com/cdn/shop/products/5x10-fiber-laser-hytek-tools-enclosed-single_24x24_crop_center.jpg?v=1701798826)
Fiber Laser 5x10 Model D 1000w-6000w
IPG Laser VS MAX Laser
E-Magazine/Print Version:
Watch Video: 6kw Tuning to Delivery...
Table Construction & Highlights
- 5ft x 10ft cut dimensions
- Frame 1/2" welded steel tube
- Aviation grade aluminum gantry
- Blade knife table surface
- X, Y axis helical rack/pinion gears
- Z axis ball screw
- HiWin linear guide rails & bearings
- 8,000 lbs table weight
Laser Cut Metals
Laser cut a variety of sheet steel, and most all highly reflective metals like:
- Stainless Steel
- Mild Steel
- Aluminum
- Carbon Steel
- Titanium
- Nickel Alloys
- Gold & Silver
- Brass
- Bronze
- Copper
COMPONENTS ELECTRONICS/MOTION

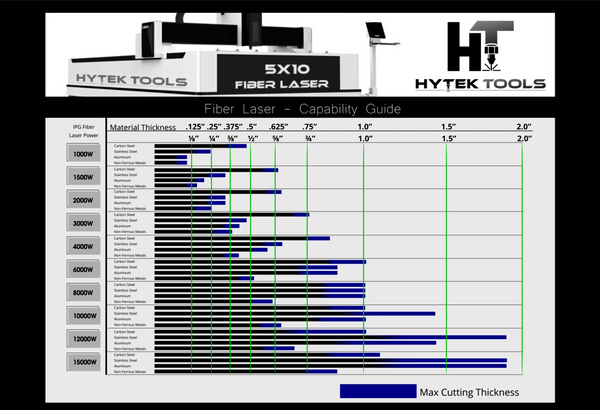

- 1000w-6000w fiber laser (see capability chart below)
- IPG laser source vs MAX Laser source
- Yaskawa servo drivers & motors
- Schneider electrical components
- S&W water chiller
Machine Stats
- Cut speed up to 4000in/min
- X, Y, cut accuracy ±0.001"
- X, Y, repeat accuracy ±0.001"
Control Software & Language
- Cypcut - Intuitive Laser Controller
- CAD Program on request
- Training in CAD-CAM included
Required Power
- 1000w AC220V single phase @ 60 amp
- 2000w-6000w AC 220v-600v three phase
Warranties Include:
- Lifetime hardware support from Hytek Tools
- Two year parts warranty bumper to bumper
- 3 Year Laser Source Warranty (Best in Industry)
- Custom tech videos on request
You Will Need:
- Forklift to offload (8,000lbs+ 8 ft forks)
or x2 6000lbs fork lifts.
Extras Include:
- Hand delivery by Hytek Tools Certified Technicians
- On site operation demonstrations
- All-inclusive, and all included in the listed PRICE - ALWAYS! No surprises!
E-Magazine/Print Version:
QUESTIONS & ANSWERS
Ask a Question-
What is the lead time on a 5' x 10' 2k fiber laser? The ones that are 23% off?
Current lead time is 60 days, order to delivery. Thank you!
